Feuling Parts Valve Spring Kit - Econo Beehive with TI Retainers - Twin Cam
Feuling Parts
Have a question about a part? Our team answers fitment and install questions Tuesday to Saturday.
Product Details
Feuling Parts Valve Spring Kit - Econo Beehive with TI Retainers - Twin Cam. Fits 30 Harley-Davidson models from 2004 to 2020, including the 1200 Custom EFI XLC, 1200 Low EFI XLL and 1200 Roadster EFI XLR. Manufacturer part number 1123.
Features
- Made from premium stress-relieved conical ovate wire
- Feature extremely high-level of fatigue life
- Use a much smaller and lighter weight retainer to reduce valve weight and create quicker rev and smoother motion
- Designed to handle the demands of performance engines with 0.585" (EU: 1,486 cm) and smaller lift camshafts

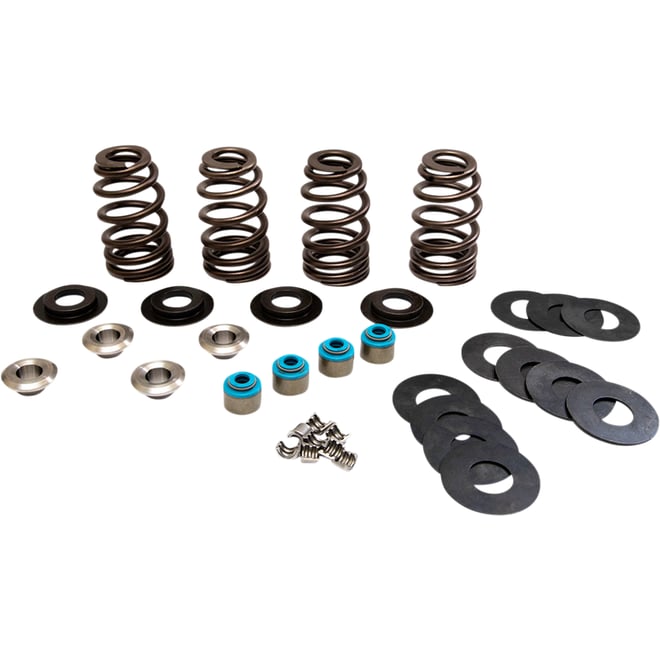

- Kits include: Econo BeeHive® valve springs, lightweight 7° steel retainers, machined heat-treated chromoly spring seats, seat shims, valve locks and a set of premium Viton® valve seals equipped with spring-loaded valve stem wiper system
- Seat lbs./installed height; 183 lbs. at 1.770" (0.510" lift) [EU: 83,00 kg at 4,50 cm (1,30 cm) lift)]
- 175 lbs. at 1.795" (0.535" lift) [EU: 79,38 kg at 4,56 cm (1,36 cm) lift)]
- 172 lbs. at 1.813" (0.553" lift) [EU: 78,02 kg at 4,61 cm (1,41 cm) lift)]
- 165 lbs. at 1.835" (0.574" lift) [EU: 74,84 kg at 4,66 cm (1,46 cm) lift)]
- 160 lbs. at 1.845" (0.585" lift) [EU: 72,57 kg at 4,69 cm (1,49 cm) lift)]
- 380 lbs. at 1.260" open height coil bind at 1.190" [EU: 172,37 kg at 3,20 cm open height coil bind at 3,02 cm]
- Dyno proven and track tested
- Feuling® BeeHive® valve springs must be installed at the correct open height, matching max lift to the open height spec of the valve springs
- Made in the U.S.A.
- Econo BeeHive® kits are direct replacement with no machining or rocker box clearance required for cams up to 0.574" (EU: 1,458 cm) lift for 84-04 Big Twin and 86-03 XL and up to .585" lift for 05-17 Twin Cam.
This product can expose you to chemicals, including chromium, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Made in the USA
Specifications
- Vendor Part Number
- 1123
- Package Height
- 3.5
- Package Length
- 6.25
- Package Width
- 5.25
- Parts Unlimited #
- 0926-3323
- Brand
- Feuling Parts
- Material
- Titanium
- Model
- Econo Beehive
- Riding Style
- Street
- Stem Diameter Imperial
- 0.3125"
- Style
- Ovate Wire Beehive
- Type
- Valve
- Unit of Measure
- Kit
Fitment
30 vehicles| Year | Make | Make / Model Model |
|---|---|---|
| 2004 - 2006 | Harley-Davidson |
Harley-Davidson 1200 Custom EFI XLC 1200 Custom EFI XLC |
| 2006 | Harley-Davidson |
Harley-Davidson 1200 Low EFI XLL 1200 Low EFI XLL |
| 2006 | Harley-Davidson |
Harley-Davidson 1200 Roadster EFI XLR 1200 Roadster EFI XLR |
| 2011 - 2017 | Harley-Davidson |
Harley-Davidson 1200 XLCP 1200 XLCP |
| 2004 - 2006 | Harley-Davidson |
Harley-Davidson 883 Custom EFI XLC 883 Custom EFI XLC |
| 2009 | Harley-Davidson |
Harley-Davidson 883 EFI XL 883 EFI XL |
| 2006 | Harley-Davidson |
Harley-Davidson 883 Low EFI XLL 883 Low EFI XLL |
| 2005 - 2006 | Harley-Davidson |
Harley-Davidson 883 Roadster EFI XLR 883 Roadster EFI XLR |
| 2007 | Harley-Davidson |
Harley-Davidson 883 Roadster XLR 883 Roadster XLR |
| 2009 | Harley-Davidson |
Harley-Davidson Sportster 1200 X XR Sportster 1200 X XR |
| 2011 - 2012 | Harley-Davidson |
Harley-Davidson Sportster 1200 XR Sportster 1200 XR |
| 2004 - 2019 | Harley-Davidson |
Harley-Davidson XL1200C Sportster 1200 Custom XL1200C Sportster 1200 Custom |
| 2016 - 2020 | Harley-Davidson |
Harley-Davidson XL1200CX Roadster XL1200CX Roadster |
| 2006 - 2011 | Harley-Davidson |
Harley-Davidson XL1200L Sportster 1200 Low XL1200L Sportster 1200 Low |
| 2007 - 2012 | Harley-Davidson |
Harley-Davidson XL1200N Sportster 1200 Nightster XL1200N Sportster 1200 Nightster |
| 2018 - 2020 | Harley-Davidson |
Harley-Davidson XL1200NS Iron 1200 XL1200NS Iron 1200 |
| 2004 - 2009 | Harley-Davidson |
Harley-Davidson XL1200R Sportster 1200 Roadster XL1200R Sportster 1200 Roadster |
| 2014 - 2017 | Harley-Davidson |
Harley-Davidson XL1200T SuperLow 1200T XL1200T SuperLow 1200T |
| 2012 - 2016 | Harley-Davidson |
Harley-Davidson XL1200V Seventy-Two XL1200V Seventy-Two |
| 2010 - 2020 | Harley-Davidson |
Harley-Davidson XL1200X Forty-Eight XL1200X Forty-Eight |
| 2018 - 2019 | Harley-Davidson |
Harley-Davidson XL1200XS Forty-Eight Special XL1200XS Forty-Eight Special |
| 2007 | Harley-Davidson |
Harley-Davidson XL50 50th Anniversary Sportster XL50 50th Anniversary Sportster |
| 2004 - 2008 | Harley-Davidson |
Harley-Davidson XL883 Sportster XL883 Sportster |
| 2004 - 2009 | Harley-Davidson |
Harley-Davidson XL883C Sportster 883 Custom XL883C Sportster 883 Custom |
| 2005 - 2010 | Harley-Davidson |
Harley-Davidson XL883L Sportster 883 Low XL883L Sportster 883 Low |
| 2011 - 2019 | Harley-Davidson |
Harley-Davidson XL883L SuperLow XL883L SuperLow |
| 2009 - 2020 | Harley-Davidson |
Harley-Davidson XL883N Iron 883 XL883N Iron 883 |
| 2005 - 2007 | Harley-Davidson |
Harley-Davidson XL883R Sportster 883 Roadster XL883R Sportster 883 Roadster |
| 2010 | Harley-Davidson |
Harley-Davidson XR1200 XR1200 |
| 2010 - 2012 | Harley-Davidson |
Harley-Davidson XR1200X XR1200X |
Fitment Disclosure
For reference only, please consult your owner’s manual to confirm your fitment.
General Safety Warning
Failure to follow the manufacturer's recommendations and requirements can cause product failure resulting in serious injury or death. While effort has been taken to collect accurate fitment information, 43 Moto accepts no liability for loss or damage resulting from errors or omissions. If you believe any of the information provided is erroneous, please email [email protected].
