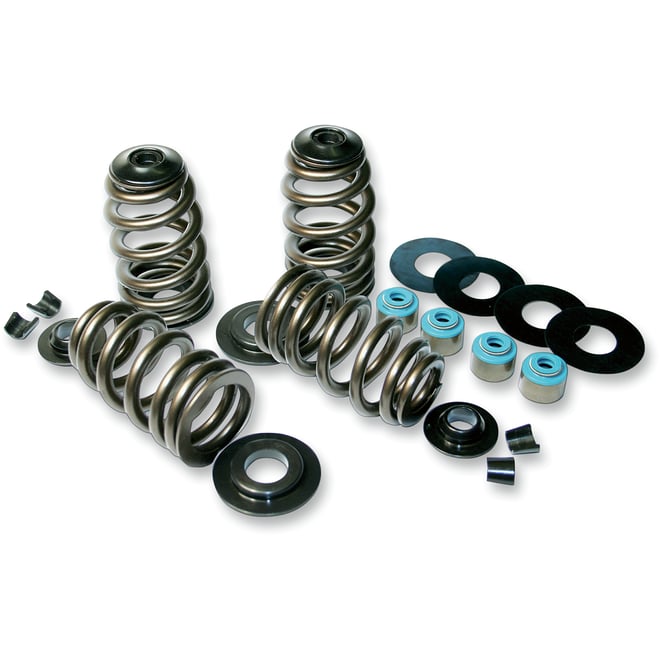

Feuling Parts Valve Spring Kit - Econo Beehive with Steel Retainers - EVO | Twin Cam
Feuling Parts
Have a question about a part? Our team answers fitment and install questions Tuesday to Saturday.
Product Details
Feuling Parts Valve Spring Kit - Econo Beehive with Steel Retainers - EVO | Twin Cam. Fits 32 Harley-Davidson models from 1986 to 2004, including the 1200 Custom EFI XLC, 1200 XLCP and 883 Custom EFI XLC. Manufacturer part number 1120.
Features
- Made from premium stress-relieved conical ovate wire
- Feature extremely high-level of fatigue life
- Use a much smaller and lighter weight retainer to reduce valve weight and create quicker rev and smoother motion
- Designed to handle the demands of performance engines with 0.585" (EU: 1,486 cm) and smaller lift camshafts
- Kits include: Econo BeeHive® valve springs, lightweight 7° steel retainers, machined heat-treated chromoly spring seats, seat shims, valve locks and a set of premium Viton® valve seals equipped with spring-loaded valve stem wiper system
- Seat lbs./installed height; 183 lbs. at 1.770" (0.510" lift) [EU: 83,00 kg at 4,50 cm (1,30 cm) lift)]
- 175 lbs. at 1.795" (0.535" lift) [EU: 79,38 kg at 4,56 cm (1,36 cm) lift)]
- 172 lbs. at 1.813" (0.553" lift) [EU: 78,02 kg at 4,61 cm (1,41 cm) lift)]
- 165 lbs. at 1.835" (0.574" lift) [EU: 74,84 kg at 4,66 cm (1,46 cm) lift)]
- 160 lbs. at 1.845" (0.585" lift) [EU: 72,57 kg at 4,69 cm (1,49 cm) lift)]
- 380 lbs. at 1.260" open height coil bind at 1.190" [EU: 172,37 kg at 3,20 cm open height coil bind at 3,02 cm]
- Dyno proven and track tested
- Feuling® BeeHive® valve springs must be installed at the correct open height, matching max lift to the open height spec of the valve springs
- Made in the U.S.A.
- Econo BeeHive® kits are direct replacement with no machining or rocker box clearance required for cams up to 0.574" (EU: 1,458 cm) lift for 84-04 Big Twin and 86-03 XL and up to .585" lift for 05-17 Twin Cam.
Prop65 Notice · WARNING
This product can expose you to chemicals, including chromium, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Made in the USA
Specifications
- Vendor Part Number
- 1120
- Package Height
- 3.28
- Package Length
- 6
- Package Width
- 4.9
- Parts Unlimited #
- 0926-1467
- Application
- Exhaust
- Brand
- Feuling Parts
- Material
- Steel
- Model
- Econo Beehive
- Riding Style
- Street
- Stem Diameter Imperial
- 0.3125"
- Style
- Ovate Wire Beehive
- Type
- Valve
- Unit of Measure
- Kit
Fitment
47 vehicles| Year | Make | Make / Model Model |
|---|---|---|
| 2002 - 2003 | Harley-Davidson |
Harley-Davidson 1200 Custom EFI XLC 1200 Custom EFI XLC |
| 2002 - 2003 | Harley-Davidson |
Harley-Davidson 1200 XLCP 1200 XLCP |
| 1999 - 2003 | Harley-Davidson |
Harley-Davidson 883 Custom EFI XLC 883 Custom EFI XLC |
| 1998 | Harley-Davidson |
Harley-Davidson 883 Custom XLC 883 Custom XLC |
| 2002 - 2003 | Harley-Davidson |
Harley-Davidson 883 Roadster EFI XLR 883 Roadster EFI XLR |
| 2000 - 2003 | Buell |
Buell Blast Blast |
| 1994 - 2004 | Harley-Davidson |
Harley-Davidson FLHR Road King FLHR Road King |
| 1998 - 2004 | Harley-Davidson |
Harley-Davidson FLHRCI Road King Classic FLHRCI Road King Classic |
| 1987 - 1993 | Harley-Davidson |
Harley-Davidson FLHS Electra Glide Sport FLHS Electra Glide Sport |
| 1993 | Harley-Davidson |
Harley-Davidson FLSTN Heritage Softail Nostalgia FLSTN Heritage Softail Nostalgia |
| 1994 - 1996 | Harley-Davidson |
Harley-Davidson FLSTN Heritage Softail Special FLSTN Heritage Softail Special |
| 1997 - 2003 | Harley-Davidson |
Harley-Davidson FLSTS Heritage Springer FLSTS Heritage Springer |
| 2001 - 2003 | Harley-Davidson |
Harley-Davidson FLSTSI Heritage Springer FLSTSI Heritage Springer |
| 1996 | Harley-Davidson |
Harley-Davidson FLTCUI Tour Glide Ultra Classic FLTCUI Tour Glide Ultra Classic |
| 1993 - 2004 | Harley-Davidson |
Harley-Davidson FXDL Dyna Low Rider FXDL Dyna Low Rider |
| 2004 | Harley-Davidson |
Harley-Davidson FXDLI Dyna Low Rider FXDLI Dyna Low Rider |
| 2001 - 2003 | Harley-Davidson |
Harley-Davidson FXDXT Dyna Super Glide T-Sport FXDXT Dyna Super Glide T-Sport |
| 1999 | Harley-Davidson |
Harley-Davidson FXR2 FXR2 |
| 1999 | Harley-Davidson |
Harley-Davidson FXR3 FXR3 |
| 2000 | Harley-Davidson |
Harley-Davidson FXR4 FXR4 |
| 2000 - 2004 | Harley-Davidson |
Harley-Davidson FXSTD Softail Deuce FXSTD Softail Deuce |
| 1997 - 2002 | Buell |
Buell M2 Cyclone M2 Cyclone |
| 2001 | Buell |
Buell M2 Cyclone Low M2 Cyclone Low |
| 2002 | Buell |
Buell M2L Cyclone M2L Cyclone |
| 1996 - 1998 | Buell |
Buell S1 Lightning S1 Lightning |
| 1998 | Buell |
Buell S1 White Lightning S1 White Lightning |
| 1995 | Buell |
Buell S2 Thunderbolt S2 Thunderbolt |
| 1995 - 1996 | Buell |
Buell S2T Thunderbolt S2T Thunderbolt |
| 1997 - 2002 | Buell |
Buell S3 Thunderbolt S3 Thunderbolt |
| 1997 - 2002 | Buell |
Buell S3T Thunderbolt S3T Thunderbolt |
| 1988 | Harley-Davidson |
Harley-Davidson Sportster 1100 XLH Sportster 1100 XLH |
| 1999 - 2003 | Harley-Davidson |
Harley-Davidson Sportster 1200 XLH Sportster 1200 XLH |
| 1987 - 2003 | Harley-Davidson |
Harley-Davidson Sportster 883 XLH Sportster 883 XLH |
| 1999 - 2003 | Buell |
Buell X1 Lightning X1 Lightning |
| 2002 | Buell |
Buell X1W White Lightning X1W White Lightning |
| 2002 - 2003 | Buell |
Buell XB9R Firebolt XB9R Firebolt |
| 2003 | Buell |
Buell XB9S Lightning XB9S Lightning |
| 2003 | Buell |
Buell XB9S Lightning Low XB9S Lightning Low |
| 1996 - 2003 | Harley-Davidson |
Harley-Davidson XL1200C Sportster 1200 Custom XL1200C Sportster 1200 Custom |
| 1996 - 2003 | Harley-Davidson |
Harley-Davidson XL1200S Sportster 1200 Sport XL1200S Sportster 1200 Sport |
| 1999 - 2003 | Harley-Davidson |
Harley-Davidson XL883C Sportster 883 Custom XL883C Sportster 883 Custom |
| 2002 - 2003 | Harley-Davidson |
Harley-Davidson XL883R Sportster 883 Roadster XL883R Sportster 883 Roadster |
| 1986 - 1987 | Harley-Davidson |
Harley-Davidson XLH1100 XLH1100 |
| 1988 - 1998 | Harley-Davidson |
Harley-Davidson XLH1200 XLH1200 |
| 1986 - 2001 | Harley-Davidson |
Harley-Davidson XLH883 XLH883 |
| 1986 - 1995 | Harley-Davidson |
Harley-Davidson XLH883DLX Sportster 883 Deluxe XLH883DLX Sportster 883 Deluxe |
| 1987 - 2003 | Harley-Davidson |
Harley-Davidson XLH883HUG Sportster 883 Hugger XLH883HUG Sportster 883 Hugger |
Fitment Disclosure
For reference only, please consult your owner’s manual to confirm your fitment.
General Safety Warning
Failure to follow the manufacturer's recommendations and requirements can cause product failure resulting in serious injury or death. While effort has been taken to collect accurate fitment information, 43 Moto accepts no liability for loss or damage resulting from errors or omissions. If you believe any of the information provided is erroneous, please email [email protected].
