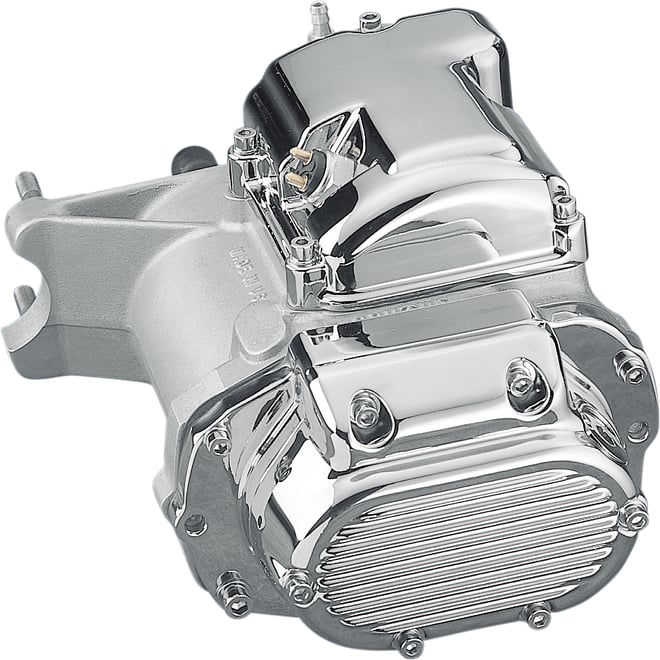

Jims 5-Speed Transmission Assembly
Jims
Have a question about a part? Our team answers fitment and install questions Tuesday to Saturday.
Product Details
Jims 5-Speed Transmission Assembly. Fits 22 Harley-Davidson models from 1970 to 1984, including the 1200 Electra Glide FLH, 1200 Fat Bob FXEF and 1200 Low Rider FXS. Manufacturer part number 8028DS.
Features
- Gears and shafts are CNC-machined from materials that exceed 8620 steel
- Hand-assembled and matched for a .0002" tolerance between the shafts
- Assembly includes chrome trap door, side cover, top cover and hardware
- All parts are made in the U.S.A. and assembled in JIMS Machining's technologically advanced facility
Made in the USA
Specifications
- Vendor Part Number
- 8028DS
- Package Height
- 14.25
- Package Length
- 21
- Package Width
- 14.25
- Brand
- Jims
- Parts Unlimited #
- DS-325777
- Material
- Aluminum
- Riding Style
- Street
- Style
- Standard Ratio
- Transmission Type
- 5 Speed
- Type
- Transmission Assembly
- Unit of Measure
- Each
Fitment
22 vehicles| Year | Make | Make / Model Model |
|---|---|---|
| 1978 - 1980 | Harley-Davidson |
Harley-Davidson 1200 Electra Glide FLH 1200 Electra Glide FLH |
| 1979 - 1980 | Harley-Davidson |
Harley-Davidson 1200 Fat Bob FXEF 1200 Fat Bob FXEF |
| 1979 | Harley-Davidson |
Harley-Davidson 1200 Low Rider FXS 1200 Low Rider FXS |
| 1979 - 1980 | Harley-Davidson |
Harley-Davidson 1200 Super Glide FXE 1200 Super Glide FXE |
| 1981 - 1982 | Harley-Davidson |
Harley-Davidson Electra Glide Classic FLH Electra Glide Classic FLH |
| 1970 - 1980 | Harley-Davidson |
Harley-Davidson Electra Glide FL Electra Glide FL |
| 1979 | Harley-Davidson |
Harley-Davidson Electra Glide FLH Electra Glide FLH |
| 1981 | Harley-Davidson |
Harley-Davidson Electra Glide Heritage FLH Electra Glide Heritage FLH |
| 1970 - 1984 | Harley-Davidson |
Harley-Davidson FLH Electra Glide FLH Electra Glide |
| 1980 - 1982 | Harley-Davidson |
Harley-Davidson FLHS Electra Glide Sport FLHS Electra Glide Sport |
| 1984 | Harley-Davidson |
Harley-Davidson FLHX Electra Glide Special FLHX Electra Glide Special |
| 1971 - 1978 | Harley-Davidson |
Harley-Davidson FX Super Glide FX Super Glide |
| 1980 - 1982 | Harley-Davidson |
Harley-Davidson FXB Sturgis FXB Sturgis |
| 1983 | Harley-Davidson |
Harley-Davidson FXDG Disc Glide FXDG Disc Glide |
| 1974 - 1978 | Harley-Davidson |
Harley-Davidson FXE Super Glide FXE Super Glide |
| 1981 | Harley-Davidson |
Harley-Davidson FXEF Fat Bob FXEF Fat Bob |
| 1977 - 1982 | Harley-Davidson |
Harley-Davidson FXS Low Rider FXS Low Rider |
| 1983 - 1984 | Harley-Davidson |
Harley-Davidson FXSB Low Rider - Belt FXSB Low Rider - Belt |
| 1980 - 1984 | Harley-Davidson |
Harley-Davidson FXWG Wide Glide FXWG Wide Glide |
| 1979 - 1980 | Harley-Davidson |
Harley-Davidson Fat Bob FXEF Fat Bob FXEF |
| 1979 | Harley-Davidson |
Harley-Davidson Low Rider FXS Low Rider FXS |
| 1979 - 1980 | Harley-Davidson |
Harley-Davidson Super Glide 80 FXE Super Glide 80 FXE |
Fitment Disclosure
For reference only, please consult your owner’s manual to confirm your fitment.
