James Gasket Front/Rear Cylinder Base Gasket - '86-'22 XL/XR
James Gasket
Have a question about a part? Our team answers fitment and install questions Tuesday to Saturday.
Product Details
Replacement Part for OEM Number(s) 4
- 16774-86
- 16774-86A
- 16774-86B
- 16789-04

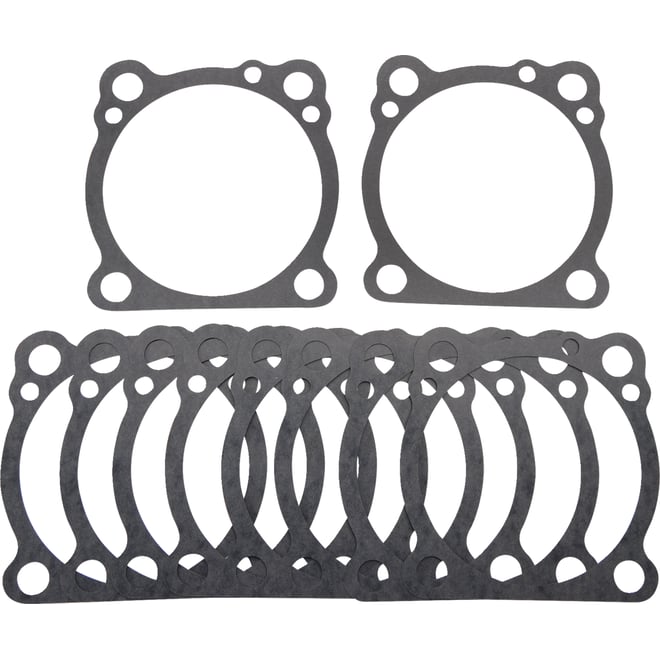

James Gasket Front/Rear Cylinder Base Gasket - '86-'22 XL/XR. Fits 40 Harley-Davidson models from 1986 to 2022, including the 1200 Custom EFI XLC, 1200 Low EFI XLL and 1200 Roadster EFI XLR. Replaces 4 OEM part numbers, including 16774-86, 16774-86A and 16774-86B. Manufacturer part number JGI1677486.
Features
- Require no gasket sealer
- Made in the U.S.A.
Made in the USA
Specifications
- UPC
- 840037902591
- Vendor Part Number
- JGI1677486
- Package Height
- 0.55
- Package Length
- 6.85
- Package Width
- 5.35
- Parts Unlimited #
- DS-174331
- Brand
- James Gasket
- Features
- Non-Beaded
- Material
- Paper
- Mounting Position
- Rear
- Riding Style
- Street
- Thickness Imperial
- 0.020"
- Thickness Metric
- 0.51 mm
- Type
- Cylinder Base
- Unit of Measure
- Each
Fitment
40 vehicles| Year | Make | Make / Model Model |
|---|---|---|
| 2002 - 2006 | Harley-Davidson |
Harley-Davidson 1200 Custom EFI XLC 1200 Custom EFI XLC |
| 2006 | Harley-Davidson |
Harley-Davidson 1200 Low EFI XLL 1200 Low EFI XLL |
| 2006 | Harley-Davidson |
Harley-Davidson 1200 Roadster EFI XLR 1200 Roadster EFI XLR |
| 2002 - 2017 | Harley-Davidson |
Harley-Davidson 1200 XLCP 1200 XLCP |
| 1999 - 2006 | Harley-Davidson |
Harley-Davidson 883 Custom EFI XLC 883 Custom EFI XLC |
| 1998 | Harley-Davidson |
Harley-Davidson 883 Custom XLC 883 Custom XLC |
| 2009 | Harley-Davidson |
Harley-Davidson 883 EFI XL 883 EFI XL |
| 2006 | Harley-Davidson |
Harley-Davidson 883 Low EFI XLL 883 Low EFI XLL |
| 2002 - 2006 | Harley-Davidson |
Harley-Davidson 883 Roadster EFI XLR 883 Roadster EFI XLR |
| 2007 | Harley-Davidson |
Harley-Davidson 883 Roadster XLR 883 Roadster XLR |
| 1988 | Harley-Davidson |
Harley-Davidson Sportster 1100 XLH Sportster 1100 XLH |
| 2009 | Harley-Davidson |
Harley-Davidson Sportster 1200 X XR Sportster 1200 X XR |
| 1999 - 2003 | Harley-Davidson |
Harley-Davidson Sportster 1200 XLH Sportster 1200 XLH |
| 2011 - 2012 | Harley-Davidson |
Harley-Davidson Sportster 1200 XR Sportster 1200 XR |
| 1987 - 2003 | Harley-Davidson |
Harley-Davidson Sportster 883 XLH Sportster 883 XLH |
| 1996 - 2019 | Harley-Davidson |
Harley-Davidson XL1200C Sportster 1200 Custom XL1200C Sportster 1200 Custom |
| 2016 - 2020 | Harley-Davidson |
Harley-Davidson XL1200CX Roadster XL1200CX Roadster |
| 2006 - 2011 | Harley-Davidson |
Harley-Davidson XL1200L Sportster 1200 Low XL1200L Sportster 1200 Low |
| 2007 - 2012 | Harley-Davidson |
Harley-Davidson XL1200N Sportster 1200 Nightster XL1200N Sportster 1200 Nightster |
| 2018 - 2021 | Harley-Davidson |
Harley-Davidson XL1200NS Iron 1200 XL1200NS Iron 1200 |
| 2004 - 2009 | Harley-Davidson |
Harley-Davidson XL1200R Sportster 1200 Roadster XL1200R Sportster 1200 Roadster |
| 1996 - 2003 | Harley-Davidson |
Harley-Davidson XL1200S Sportster 1200 Sport XL1200S Sportster 1200 Sport |
| 2014 - 2017 | Harley-Davidson |
Harley-Davidson XL1200T SuperLow 1200T XL1200T SuperLow 1200T |
| 2012 - 2016 | Harley-Davidson |
Harley-Davidson XL1200V Seventy-Two XL1200V Seventy-Two |
| 2010 - 2022 | Harley-Davidson |
Harley-Davidson XL1200X Forty-Eight XL1200X Forty-Eight |
| 2018 - 2019 | Harley-Davidson |
Harley-Davidson XL1200XS Forty-Eight Special XL1200XS Forty-Eight Special |
| 2007 | Harley-Davidson |
Harley-Davidson XL50 50th Anniversary Sportster XL50 50th Anniversary Sportster |
| 2004 - 2008 | Harley-Davidson |
Harley-Davidson XL883 Sportster XL883 Sportster |
| 1999 - 2009 | Harley-Davidson |
Harley-Davidson XL883C Sportster 883 Custom XL883C Sportster 883 Custom |
| 2005 - 2010 | Harley-Davidson |
Harley-Davidson XL883L Sportster 883 Low XL883L Sportster 883 Low |
| 2011 - 2019 | Harley-Davidson |
Harley-Davidson XL883L SuperLow XL883L SuperLow |
| 2009 - 2022 | Harley-Davidson |
Harley-Davidson XL883N Iron 883 XL883N Iron 883 |
| 2002 - 2007 | Harley-Davidson |
Harley-Davidson XL883R Sportster 883 Roadster XL883R Sportster 883 Roadster |
| 1986 - 1987 | Harley-Davidson |
Harley-Davidson XLH1100 XLH1100 |
| 1988 - 1998 | Harley-Davidson |
Harley-Davidson XLH1200 XLH1200 |
| 1986 - 2001 | Harley-Davidson |
Harley-Davidson XLH883 XLH883 |
| 1986 - 1995 | Harley-Davidson |
Harley-Davidson XLH883DLX Sportster 883 Deluxe XLH883DLX Sportster 883 Deluxe |
| 1987 - 2003 | Harley-Davidson |
Harley-Davidson XLH883HUG Sportster 883 Hugger XLH883HUG Sportster 883 Hugger |
| 2010 | Harley-Davidson |
Harley-Davidson XR1200 XR1200 |
| 2010 - 2012 | Harley-Davidson |
Harley-Davidson XR1200X XR1200X |
