Feuling Parts Valve Spring Kit - High Load Beehive with TI Retainers - M8
Feuling Parts
STILL NOT SURE ABOUT FITMENT?
LET US HELP
SKU: 90-36426
SKU:
Fits Bike
Does Not Fit
Bike Specific
Sale
$609.95
Only 1 left in stock - Order soon!
Free Shipping
Product Details
Features
- Machined from a premium grade Hi-tensile chrome silicon single conical ovate wire, shot-peened with a specially processed thermal heat treat and super NexTex® finish to give these valve springs the needed fatigue life to exceed the high demands of V-Twin engines from stock to performance
- FEULING® BEEHIVE® valve springs use a smaller lighter weight retainer which drastically reduces the valve weight creating a quicker revving and smoother motion than comparable dual or single valve springs.
- Valve springs are a direct bolt-in replacement, no spring seat or rocker cover machining required up to 0.565” (EU: 1,435 cm) lift
- Springs will accommodate over 0.600" (EU: 1,524 cm) cam lift, but will require spring seat pocket machining on the cylinder heads to set correct spring open height
- Smaller lighter weight retainers which drastically reduce the valve weight creating a quicker revving and smoother motion than comparable dual or single valve springs
- Eliminate valve spring separation, maximize stability, reduce valve-train noise & harmonics

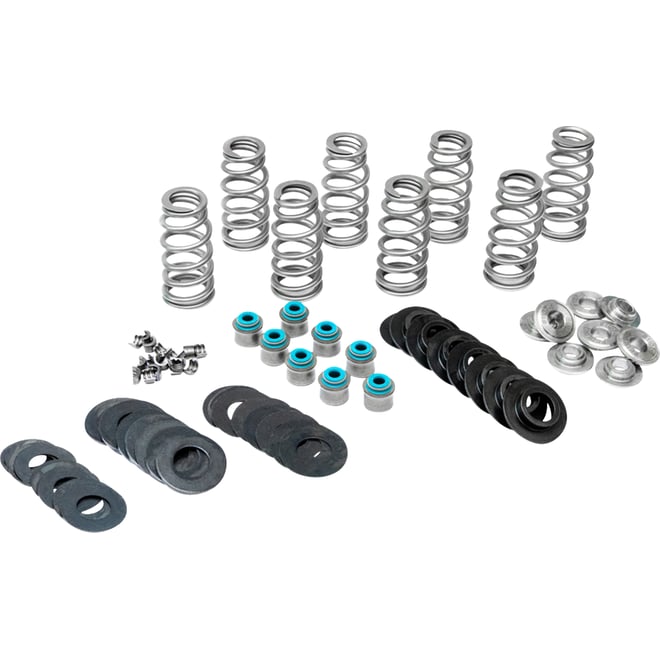

- Kits include: matched set of Feuling® High Load Beehive® valve springs, Ti retainers, machined spring seats, seat shims, valve locks and a set of premium Viton® valve seals equipped with a spring loaded valve stem wiper system
- ONLY recommended for large lift camshafts and RACE style engines as these valvesprings if not set properly will create extreme rocker arm deflection
- Seat lbs./Installed Height
- 151 Lbs. @ 1.475" (0.485" Lift) [EU: 68,49 kg @ 3,747 cm(1,232 cm Lift)]
- 144 Lbs. @ 1.498" (0.508" Lift) [EU: 65,32 kg @ 3,805 cm(1,290 cm Lift)]
- 143 Lbs. @ 1.501" (0.511" Lift) [EU: 64,86 kg @ 3,813 cm(1,298 cm Lift)]
- 140 Lbs. @ 1.511" (0.521" Lift) [EU: 63,50 kg @ 3,838 cm(1,323 cm Lift)]
- 124 Lbs. @ 1.562" (0.578" Lift) [EU: 56,25 kg @ 3,968 cm(1,468 cm Lift)]
- 120 Lbs. @ 1.582" (0.592" Lift) [EU: 54,43 kg @ 4,018 cm(1,504 cm Lift)]
- 304 Lbs @ 0.990" OPEN HEIGHT (EU: 137,89 kg @ 2,515 cm Open Height)
- Coil Bind @ 0.945" (EU: 2,400 cm)
- Recommended for 0.540”+ (EU: 1,372 cm +) lift camshafts
- Feuling® BeeHive® valve springs must be installed at the correct OPEN HEIGHT, matching max lift to the open height spec of the valve springs
- Made in the U.S.A.
Prop65 Notice
WARNING
This product can expose you to chemicals, including chromium, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Specifications
| Vendor Part Number | 1207 |
|---|---|
| Package Height | 3.5 |
| Package Length | 6.2 |
| Package Width | 4.8 |
| Parts Unlimited # | 0926-3138 |
| Brand | Feuling Parts |
| Model | High-Load Beehive |
| Riding Style | Street |
| Style | Ovate Wire Beehive |
| Type | Valve |
| Unit of Measure | Kit |
Fitment
| YEAR | MAKE | MODEL |
|---|---|---|
| 2025 | Harley-Davidson | CVO Street Glide FLHXSE |
| 2017 - 2025 | Harley-Davidson | Electra Glide Police FLHTPI |
| 2025 | Harley-Davidson | Electra Glide Police FLHTP |
| 2018 - 2020 | Harley-Davidson | FLDE Deluxe 107 |
| 2018 - 2019 | Harley-Davidson | FLFB Fat Boy 107 |
| 2018 - 2024 | Harley-Davidson | FLFBS Fat Boy 114 |
| 2021 | Harley-Davidson | FLH Electra Glide Revival |
| 2018 - 2021 | Harley-Davidson | FLHC Heritage Classic 107 |
| 2018 - 2024 | Harley-Davidson | FLHCS Heritage Classic 114 |
| 2023 | Harley-Davidson | FLHFB Electra Glide Highway King |
| 2017 - 2022 | Harley-Davidson | FLHR Road King |
| 2017 - 2025 | Harley-Davidson | FLHRXS Road King Special |
| 2019 - 2022 | Harley-Davidson | FLHT Electra Glide Standard |
| 2017 - 2019 | Harley-Davidson | FLHTCU Electra Glide Ultra Classic |
| 2017 - 2025 | Harley-Davidson | FLHTCUTG Tri Glide Ultra |
| 2020 | Harley-Davidson | FLHTCUTGSE CVO Tri Glide |
| 2017 - 2024 | Harley-Davidson | FLHTK Ultra Limited |
| 2017 - 2019 | Harley-Davidson | FLHTKL Ultra Limited Low |
| 2017 - 2021 | Harley-Davidson | FLHTKSE CVO Limited |
| 2017 - 2025 | Harley-Davidson | FLHX Street Glide |
| 2017 - 2023 | Harley-Davidson | FLHXS Street Glide Special |
| 2017 - 2025 | Harley-Davidson | FLHXSE CVO Street Glide |
| 2022 - 2023 | Harley-Davidson | FLHXST Street Glide ST |
| 2024 | Harley-Davidson | FLI Hydra-Glide Revival |
| 2017 - 2025 | Harley-Davidson | FLRT Freewheeler |
| 2018 - 2021 | Harley-Davidson | FLSB Sport Glide 107 |
| 2018 - 2021 | Harley-Davidson | FLSL Softail Slim 107 |
| 2020 - 2024 | Harley-Davidson | FLTRK Road Glide Limited |
| 2022 - 2023 | Harley-Davidson | FLTRKSE CVO Road Glide Limited |
| 2025 | Harley-Davidson | FLTRT Road Glide 3 |
| 2017 - 2019 | Harley-Davidson | FLTRU Road Glide Ultra |
| 2017 - 2025 | Harley-Davidson | FLTRX Road Glide |
| 2017 - 2023 | Harley-Davidson | FLTRXS Road Glide Special |
| 2018 - 2024 | Harley-Davidson | FLTRXSE CVO Road Glide |
| 2022 - 2023 | Harley-Davidson | FLTRXST Road Glide ST |
| 2024 | Harley-Davidson | FLTRXSTSE CVO Road Glide ST |
| 2018 - 2020 | Harley-Davidson | FXBB Street Bob 107 |
| 2021 - 2024 | Harley-Davidson | FXBBS Street Bob 114 |
| 2018 - 2019 | Harley-Davidson | FXBR Breakout 107 |
| 2023 - 2025 | Harley-Davidson | FXBR Breakout 117 |
| 2018 - 2020 | Harley-Davidson | FXBRS Breakout 114 |
| 2019 - 2020 | Harley-Davidson | FXDRS FXDR 114 |
| 2018 - 2019 | Harley-Davidson | FXFB Fat Bob 107 |
| 2018 - 2023 | Harley-Davidson | FXFBS Fat Bob 114 |
| 2018 - 2020 | Harley-Davidson | FXLR Low Rider 107 |
| 2020 - 2021 | Harley-Davidson | FXLRS Low Rider S 114 |
| 2022 - 2025 | Harley-Davidson | FXLRS Low Rider S 117 |
| 2022 - 2025 | Harley-Davidson | FXLRST Low Rider ST 117 |
| 2022 | Harley-Davidson | FXRST Low Rider El Diablo 117 |
| 2020 - 2024 | Harley-Davidson | FXST Softail Standard 107 |
| 2025 | Harley-Davidson | Freewheeler FLRT |
| 2025 | Harley-Davidson | Road Glide 3 FLTRT |
| 2025 | Harley-Davidson | Road Glide Custom FLTRX |
| 2024 - 2025 | Harley-Davidson | Road Glide Police FLTRXP |
| 2017 - 2025 | Harley-Davidson | Road King Police FLHP |
| 2025 | Harley-Davidson | Softail Breakout FXBR |
| 2025 | Harley-Davidson | Softail Fat Boy FLFB |
| 2025 | Harley-Davidson | Softail Heritage Classic FLHC |
| 2025 | Harley-Davidson | Softail Low Rider S FXLRS |
| 2025 | Harley-Davidson | Softail Low Rider ST FXLRST |
| 2022 - 2025 | Harley-Davidson | Softail Street Bob FXBB |
| 2025 | Harley-Davidson | Street Glide EFI FLHX |
| 2025 | Harley-Davidson | Street Glide Ultra FLHXU |
| 2025 | Harley-Davidson | Tri Glide Ultra Classic FLHTCUTG |
Fitment Disclosure
For reference only, please consult your owner’s manual to confirm your fitment.
