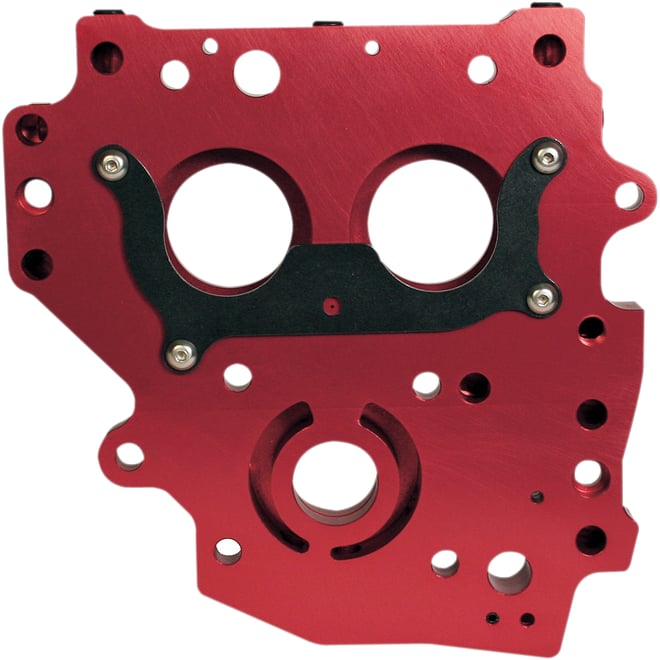

Feuling Parts High Flow Camplate - Gear Drive - Twin Cam

Feuling Parts

Feuling Parts

SKU: 90-35440

Bike Specific PartFits your bikeDoes not fit your bikeCheck that this fits your bike

Shop Parts That Fit
$387.95
$379.95
/ each

Out of stock

Don’t Forget

Fits with this item

Have a question about a part? Our team answers fitment and install questions Tuesday to Saturday.

(920) 458-0777

Product Details

Feuling Parts High Flow Camplate - Gear Drive - Twin Cam. Fits 49 Harley-Davidson models from 1999 to 2006, including the 15th Anniversary Fat Boy FLSTF, Electra Glide Ultra Classic FLHTCU and FLHR Road King. Manufacturer part number 8000.

Features

  • Feuling® HIGH FLOW cam plates for T/C® engines increase engine oil flow and volume by enlarging the oil pump reservoirs and critical oil passages, including matching the oil port holes throughout the cam plate to the port holes in the engine case increasing engine oil flow to the lifters, piston cooling jets, crankshaft and rod bearings resulting in 25-35 degree cooler engine temperatures
  • Made from 7075 billet aluminum, which is 50% harder and stronger than the factory, SE® and other aftermarket cam plates; the 7075 increases the strength and hardness of the cam plate, holding tighter tolerances under temperature, eliminating flexing and the need for bronze bushings as 7075 material has excellent bearing-like properties
  • Feuling® cam plates are blueprinted and matched to the Feuling® oil pumps, which allow the Twin Cam® engine to take full advantage of the increased volume from the high-flow oil pumps, resulting in cooler and quieter engine operation
  • Tighter cam bearing bore tolerance for improved press fit
  • Cam plates are pressure-tested; pressure relief valve and spring are pre-set and designed for increased volume and pressure, eliminating the need to stretch the spring or use of a shim
  • When matched with the Feuling® Race Series Oil Pump, rear wheel power gains of three Horsepower and 4 ft/lbs of Torque are achieved
  • For use ONLY with the Feuling® oil pumps
  • Bolts into stock location
  • Great for those who have already upgraded their early-style engine and like their existing camshafts
  • Cam plate includes bearing retainer plate and hardware
  • Require the purchase of "factory" hydraulic chain drive tensioners
  • Made in the U.S.A.
Prop65 Notice · WARNING

This product can expose you to chemicals, including chromium, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Made in the USA

Specifications

Vendor Part Number
8000
Package Height
2.04
Package Length
8.7
Package Width
8.46
Parts Unlimited #
0920-0006
Brand
Feuling Parts
Color/Finish
Red
Material
7075 Billet Aluminum
Model
High Flow
Riding Style
Street
Type
Gear Drive
Unit of Measure
Each

Fitment

49 vehicles
Year Make / Model Model
2005 Harley-Davidson
15th Anniversary Fat Boy FLSTF 15th Anniversary Fat Boy FLSTF
1999 Harley-Davidson
Electra Glide Ultra Classic FLHTCU Electra Glide Ultra Classic FLHTCU
1999 - 2006 Harley-Davidson
FLHR Road King FLHR Road King
1999 - 2006 Harley-Davidson
FLHRCI Road King Classic FLHRCI Road King Classic
2000 - 2006 Harley-Davidson
FLHRI Road King FLHRI Road King
2004 - 2006 Harley-Davidson
FLHRS Road King Custom FLHRS Road King Custom
2004 - 2006 Harley-Davidson
FLHRSI Road King Custom FLHRSI Road King Custom
1999 - 2006 Harley-Davidson
FLHT Electra Glide Standard FLHT Electra Glide Standard
1999 - 2005 Harley-Davidson
FLHTC Electra Glide Classic FLHTC Electra Glide Classic
1999 - 2006 Harley-Davidson
FLHTCI Electra Glide Classic FLHTCI Electra Glide Classic
1999 - 2006 Harley-Davidson
FLHTCUI Electra Glide Ultra Classic FLHTCUI Electra Glide Ultra Classic
2003 - 2006 Harley-Davidson
FLHTI Electra Glide Standard FLHTI Electra Glide Standard
2006 Harley-Davidson
FLHX Street Glide FLHX Street Glide
2006 Harley-Davidson
FLHXI Street Glide FLHXI Street Glide
2006 Harley-Davidson
FLST Heritage Softail FLST Heritage Softail
2000 - 2006 Harley-Davidson
FLSTC Heritage Softail Classic FLSTC Heritage Softail Classic
2001 - 2006 Harley-Davidson
FLSTCI Heritage Softail Classic FLSTCI Heritage Softail Classic
2000 - 2006 Harley-Davidson
FLSTF Fat Boy FLSTF Fat Boy
2001 - 2006 Harley-Davidson
FLSTFI Fat Boy FLSTFI Fat Boy
2006 Harley-Davidson
FLSTI Heritage Softail FLSTI Heritage Softail
2005 - 2006 Harley-Davidson
FLSTN Softail Deluxe FLSTN Softail Deluxe
2005 - 2006 Harley-Davidson
FLSTNI Softail Deluxe FLSTNI Softail Deluxe
2000 - 2003 Harley-Davidson
FLSTS Heritage Springer FLSTS Heritage Springer
2005 - 2006 Harley-Davidson
FLSTSC Softail Springer Classic FLSTSC Softail Springer Classic
2005 - 2006 Harley-Davidson
FLSTSCI Softail Springer Classic FLSTSCI Softail Springer Classic
2001 - 2003 Harley-Davidson
FLSTSI Heritage Springer FLSTSI Heritage Springer
1999 - 2002 Harley-Davidson
FLTR Road Glide FLTR Road Glide
1999 - 2006 Harley-Davidson
FLTRI Road Glide FLTRI Road Glide
1999 - 2005 Harley-Davidson
FXD Dyna Super Glide FXD Dyna Super Glide
2005 Harley-Davidson
FXDC Super Glide Custom FXDC Super Glide Custom
2005 Harley-Davidson
FXDCI Super Glide Custom FXDCI Super Glide Custom
2004 - 2005 Harley-Davidson
FXDI Dyna Super Glide FXDI Dyna Super Glide
1999 - 2005 Harley-Davidson
FXDL Dyna Low Rider FXDL Dyna Low Rider
2004 - 2005 Harley-Davidson
FXDLI Dyna Low Rider FXDLI Dyna Low Rider
1999 - 2000 Harley-Davidson
FXDS-Conv Dyna Convertible FXDS-Conv Dyna Convertible
1999 - 2005 Harley-Davidson
FXDWG Dyna Wide Glide FXDWG Dyna Wide Glide
2004 - 2005 Harley-Davidson
FXDWGI Dyna Wide Glide FXDWGI Dyna Wide Glide
1999 - 2005 Harley-Davidson
FXDX Dyna Super Glide Sport FXDX Dyna Super Glide Sport
2004 - 2005 Harley-Davidson
FXDXI Dyna Super Glide Sport FXDXI Dyna Super Glide Sport
2001 - 2003 Harley-Davidson
FXDXT Dyna Super Glide T-Sport FXDXT Dyna Super Glide T-Sport
2000 - 2006 Harley-Davidson
FXST Softail Standard FXST Softail Standard
2000 - 2006 Harley-Davidson
FXSTB Night Train FXSTB Night Train
2001 - 2006 Harley-Davidson
FXSTBI Night Train FXSTBI Night Train
2000 - 2006 Harley-Davidson
FXSTD Softail Deuce FXSTD Softail Deuce
2001 - 2006 Harley-Davidson
FXSTDI Softail Deuce FXSTDI Softail Deuce
2001 - 2006 Harley-Davidson
FXSTI Softail Standard FXSTI Softail Standard
2000 - 2006 Harley-Davidson
FXSTS Springer Softail FXSTS Springer Softail
2001 - 2006 Harley-Davidson
FXSTSI Springer Softail FXSTSI Springer Softail
1999 Harley-Davidson
Road King EFI FLHR Road King EFI FLHR

Fitment Disclosure
For reference only, please consult your owner’s manual to confirm your fitment.
