Feuling Parts Camchest Kit - 487 - Chain Drive - Water Cooled - Race Series® Lifters - M8
Feuling Parts
Don’t Forget
Have a question about a part? Our team answers fitment and install questions Tuesday to Saturday.
Product Details
Feuling Parts Camchest Kit - 487 - Chain Drive - Water Cooled - Race Series® Lifters - M8. Fits 14 Harley-Davidson models from 2017 to 2025, including the FLHTCUTG Tri Glide Ultra, FLHTCUTGSE CVO Tri Glide and FLHTK Ultra Limited. Manufacturer part number 7273.
Features

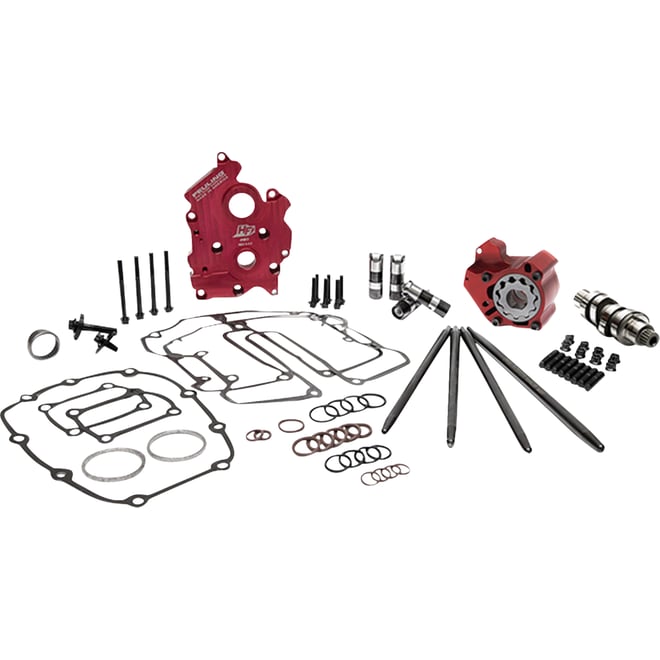

- 487 Reaper® Chain Drive Camshaft, Cam Installation Kit, Race Series® Lifters, One Piece Pushrod, Race Series® Oil Pump, High Flow Camplate, and ARP Rocker Studs and Nuts, Camplate/Oil Pump Fasteners are included in this kit
487 Reaper Camshaft
- Bolt-in
- Chain Drive
- Camshaft for 114" and 117" engine
- Responds very well to increased bore and or compression
- Maintains bottom end power and pulls hard above 2,950 rpm when compared to stock
- RPM range 2,250 - 6,100
- Cam specs measured in the engine on the lifter @ 0.050 using a 1.61 rocker arm ratio.
Cam Installation Kit
- Includes cam bearing, cam/crank hardware and gasket/O-ring kit
Race Series® Lifters
- Hydraulic roller lifters, standard OD (0.8420-0.8423)
- Hydraulic lifters have a full .200 of total travel designed with a slower bleed down rate to handle heavy valve spring pressures
One Piece Pushrods
- Heavy duty 7/16 diameter tube with 0.165 wall thickness, precision concentricity, heat treated with a black oxide finish
Race Series® Oil Pump
- Increase oil pressure, scavenge volume and engine oil flow
- 30% more pressure gear volume over stock
- 53% more scavenge gear volume over stock
- 42% more scavenge volume with port sizing, matched passages and holes to the engine case
- 46% more oil volume to the crankshaft and connecting rod bearing
- 15°- 25° cooler engine temperatures
- 15°- 30° cooler oil temperatures
- 10-30 more PSI of oil pressure
- Reduces wet sumping, blow by and oily air cleaners
- Magnets in oil pump to help protect gears and pressure relief valve
- Rear wheel power gains of 2 horsepower and 2 ft. lb. of torque are achieved.
- FEULING test results show a 50% reduction of engine sump oil level.
High Flow Camplate
- Billet 7075 aluminum
- Bolts into stock location
- Made in the USA
- Feuling does not recommend tuning beyond stock emissions standards.
Not Legal For Sale Or Use In California On Any Pollution Controlled Motor Vehicle or Carb Compliant.
Made in the USA
Specifications
- Vendor Part Number
- 7273
- Package Height
- 5.98
- Package Length
- 16.54
- Package Width
- 11.1
- Parts Unlimited #
- 0925-1622
- Application
- Water Cooled
- Brand
- Feuling Parts
- Exhaust Close Imperial
- 17.5°
- Exhaust Duration Imperial
- 241.5°
- Exhaust Lift Imperial
- 0.487"
- Exhaust Lift at TDC Imperial
- 0.146"
- Exhaust Lobe Centerline Imperial
- 103.25°
- Exhaust Open Imperial
- 44°
- Grind
- 487 Series
- Intake Close Imperial
- 37°
- Intake Duration Imperial
- 237°
- Intake Lift Imperial
- 0.478"
- Intake Lift at TDC Imperial
- 0.180"
- Intake Lobe Centerline Imperial
- 98.5°
- Intake Open Imperial
- 20.5°
- Model
- Reaper
- Riding Style
- Street
- Type
- Chain Drive
- Unit of Measure
- Kit
Fitment
14 vehicles| Year | Make | Make / Model Model |
|---|---|---|
| 2017 - 2025 | Harley-Davidson |
Harley-Davidson FLHTCUTG Tri Glide Ultra FLHTCUTG Tri Glide Ultra |
| 2020 - 2022 | Harley-Davidson |
Harley-Davidson FLHTCUTGSE CVO Tri Glide FLHTCUTGSE CVO Tri Glide |
| 2017 - 2024 | Harley-Davidson |
Harley-Davidson FLHTK Ultra Limited FLHTK Ultra Limited |
| 2017 - 2019 | Harley-Davidson |
Harley-Davidson FLHTKL Ultra Limited Low FLHTKL Ultra Limited Low |
| 2017 - 2021 | Harley-Davidson |
Harley-Davidson FLHTKSE CVO Limited FLHTKSE CVO Limited |
| 2017 - 2022 | Harley-Davidson |
Harley-Davidson FLHXSE CVO Street Glide FLHXSE CVO Street Glide |
| 2022 | Harley-Davidson |
Harley-Davidson FLTRKSE CVO Road Glide Limited FLTRKSE CVO Road Glide Limited |
| 2017 - 2019 | Harley-Davidson |
Harley-Davidson FLTRU Road Glide Ultra FLTRU Road Glide Ultra |
| 2023 - 2025 | Harley-Davidson |
Harley-Davidson FLTRX Road Glide FLTRX Road Glide |
| 2025 | Harley-Davidson |
Harley-Davidson FLTRXRRSE CVO Road Glide RR FLTRXRRSE CVO Road Glide RR |
| 2018 - 2022 | Harley-Davidson |
Harley-Davidson FLTRXSE CVO Road Glide FLTRXSE CVO Road Glide |
| 2024 - 2025 | Harley-Davidson |
Harley-Davidson FLTRXSTSE CVO Road Glide ST FLTRXSTSE CVO Road Glide ST |
| 2025 | Harley-Davidson |
Harley-Davidson Road Glide Custom FLTRX Road Glide Custom FLTRX |
| 2024 - 2025 | Harley-Davidson |
Harley-Davidson Road Glide Police FLTRXP Road Glide Police FLTRXP |
Fitment Disclosure
For reference only, please consult your owner’s manual to confirm your fitment.
