Feuling Parts Camchest Kit - 487 - Chain Drive - Oil Cooled - Race Series® Lifters - M8
Feuling Parts
Don’t Forget
Have a question about a part? Our team answers fitment and install questions Tuesday to Saturday.
Product Details
Feuling Parts Camchest Kit - 487 - Chain Drive - Oil Cooled - Race Series® Lifters - M8. Fits 25 Harley-Davidson models from 2017 to 2025, including the FLDE Deluxe 107, FLFB Fat Boy 107 and FLFBS Fat Boy 114. Manufacturer part number 7272.
Features

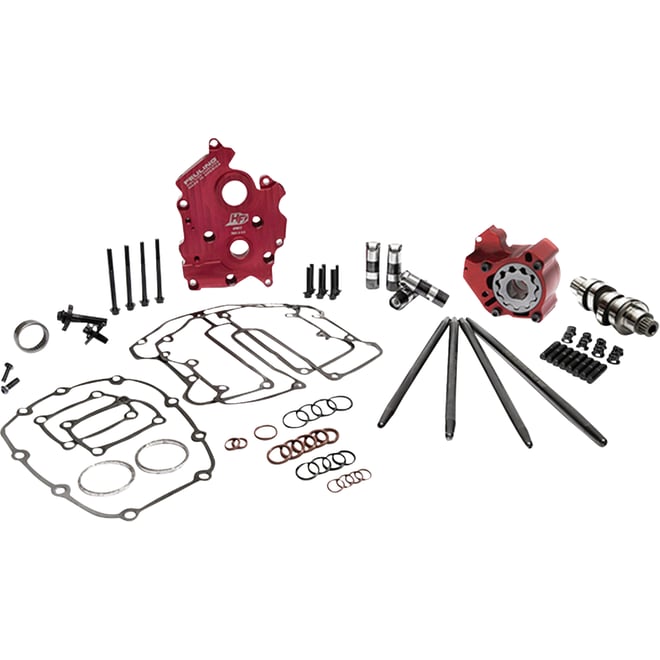

- 487 Reaper® Chain Drive Camshaft, Cam Installation Kit, Race Series Lifters, One Piece Pushrod, Race Series® Oil Pump, High Flow Camplate, and ARP Rocker Studs and Nuts, Camplate/Oil Pump Fasteners are included in this kit
487 Reaper Camshaft
- Chain Drive
- 38° overlap
- RPM range 2,250 - 6,100
- Camshaft for 114" and 117" engine
- Responds very well to increased bore and or compression
- Maintains bottom end power and pulls hard above 2,950 rpm when compared to stock
- Cam specs measured in the engine on the lifter @ 0.050 using a 1.61 rocker arm ratio
Cam Installation Kit
- Includes cam bearing, cam/crank hardware and gasket/O-ring kit
Race Series® Lifters
- Full-travel hydraulic lifters made from machined steel designed with 0.200" of travel
One Piece Pushrod
- HP+ heavy duty 7/16 diameter tube with 0.165 wall thickness, precision concentricity, heat treated with a black oxide finish
Race Series® Oil Pump
- High flow 2.250 Chrome Moly gerotor gears
- 27% more pressure and scavenge gear volume over stock
- 42% more scavenge volume with matched passages, port sizing and holes to the engine case
- 46% more oil volume to the crankshaft and connecting rod bearing
- 15°- 25° cooler engine temperatures
- 15°- 30° cooler oil temperatures
- 10-30 more PSI of oil pressure
- Reduces wet sumping, blow by and oily air cleaners
- Magnets to help protect gears and pressure relief valve
- FEULING test results show a 50% reduction of engine sump oil level.
High Flow Camplate
- Rear wheel power gains of 2 horsepower and 2 ft. lb. of torque can be achieved
- Made in the USA
- Feuling does not recommend tuning beyond stock emissions standards.
Not Legal For Sale Or Use In California On Any Pollution Controlled Motor Vehicle or Carb Compliant.
Made in the USA
Specifications
- Vendor Part Number
- 7272
- Package Height
- 6.42
- Package Length
- 16.46
- Package Width
- 11.02
- Parts Unlimited #
- 0925-1620
- Application
- Oil Cooled
- Brand
- Feuling Parts
- Exhaust Close Imperial
- 17.5°
- Exhaust Duration Imperial
- 241.5°
- Exhaust Lift Imperial
- 0.487"
- Exhaust Lift at TDC Imperial
- 0.146"
- Exhaust Lobe Centerline Imperial
- 103.25°
- Exhaust Open Imperial
- 44°
- Grind
- 487 Series
- Intake Close Imperial
- 37°
- Intake Duration Imperial
- 237°
- Intake Lift Imperial
- 0.478"
- Intake Lift at TDC Imperial
- 0.180"
- Intake Lobe Centerline Imperial
- 98.5°
- Intake Open Imperial
- 20.5°
- Model
- Reaper
- Riding Style
- Street
- Type
- Chain Drive
- Unit of Measure
- Kit
Fitment
25 vehicles| Year | Make | Make / Model Model |
|---|---|---|
| 2018 - 2020 | Harley-Davidson |
Harley-Davidson FLDE Deluxe 107 FLDE Deluxe 107 |
| 2018 - 2019 | Harley-Davidson |
Harley-Davidson FLFB Fat Boy 107 FLFB Fat Boy 107 |
| 2018 - 2024 | Harley-Davidson |
Harley-Davidson FLFBS Fat Boy 114 FLFBS Fat Boy 114 |
| 2018 - 2021 | Harley-Davidson |
Harley-Davidson FLHC Heritage Classic 107 FLHC Heritage Classic 107 |
| 2018 - 2024 | Harley-Davidson |
Harley-Davidson FLHCS Heritage Classic 114 FLHCS Heritage Classic 114 |
| 2017 - 2022 | Harley-Davidson |
Harley-Davidson FLHR Road King FLHR Road King |
| 2017 - 2025 | Harley-Davidson |
Harley-Davidson FLHRXS Road King Special FLHRXS Road King Special |
| 2017 - 2019 | Harley-Davidson |
Harley-Davidson FLHTCU Electra Glide Ultra Classic FLHTCU Electra Glide Ultra Classic |
| 2017 - 2025 | Harley-Davidson |
Harley-Davidson FLHX Street Glide FLHX Street Glide |
| 2017 - 2023 | Harley-Davidson |
Harley-Davidson FLHXS Street Glide Special FLHXS Street Glide Special |
| 2022 - 2023 | Harley-Davidson |
Harley-Davidson FLHXST Street Glide ST FLHXST Street Glide ST |
| 2017 - 2025 | Harley-Davidson |
Harley-Davidson FLRT Freewheeler FLRT Freewheeler |
| 2023 - 2025 | Harley-Davidson |
Harley-Davidson FLTRT Road Glide 3 FLTRT Road Glide 3 |
| 2017 - 2025 | Harley-Davidson |
Harley-Davidson FLTRX Road Glide FLTRX Road Glide |
| 2017 - 2023 | Harley-Davidson |
Harley-Davidson FLTRXS Road Glide Special FLTRXS Road Glide Special |
| 2022 - 2023 | Harley-Davidson |
Harley-Davidson FLTRXST Road Glide ST FLTRXST Road Glide ST |
| 2018 - 2019 | Harley-Davidson |
Harley-Davidson FXBR Breakout 107 FXBR Breakout 107 |
| 2023 - 2025 | Harley-Davidson |
Harley-Davidson FXBR Breakout 117 FXBR Breakout 117 |
| 2018 - 2020 | Harley-Davidson |
Harley-Davidson FXBRS Breakout 114 FXBRS Breakout 114 |
| 2018 - 2019 | Harley-Davidson |
Harley-Davidson FXFB Fat Bob 107 FXFB Fat Bob 107 |
| 2018 - 2023 | Harley-Davidson |
Harley-Davidson FXFBS Fat Bob 114 FXFBS Fat Bob 114 |
| 2024 - 2025 | Harley-Davidson |
Harley-Davidson Road Glide Police FLTRXP Road Glide Police FLTRXP |
| 2017 - 2025 | Harley-Davidson |
Harley-Davidson Road King Police FLHP Road King Police FLHP |
| 2025 | Harley-Davidson |
Harley-Davidson Softail Breakout FXBR Softail Breakout FXBR |
| 2025 | Harley-Davidson |
Harley-Davidson Softail Fat Boy FLFB Softail Fat Boy FLFB |
Fitment Disclosure
For reference only, please consult your owner’s manual to confirm your fitment.
