Feuling Parts Cam Kit - 487 - Chain Drive - Race Series Lifters - M8
Feuling Parts
Don’t Forget
Fits with this item
Have a question about a part? Our team answers fitment and install questions Tuesday to Saturday.
Product Details
Feuling Parts Cam Kit - 487 - Chain Drive - Race Series Lifters - M8. Fits 53 Harley-Davidson models from 2017 to 2025, including the Electra Glide Police FLHTPI, FLDE Deluxe 107 and FLFB Fat Boy 107. Manufacturer part number 1462.
Features

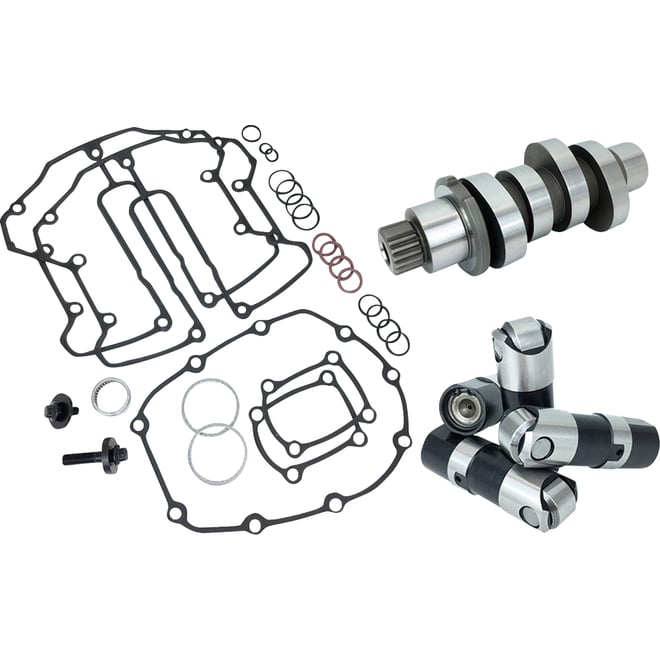

- 487 Reaper Chain Drive Camshaft, Cam Installation Kit and Race Series Lifters are included in this kit
487 Reaper Camshaft
- Bolt in
- Chain Drive
- 38° overlap
- RPM range 2,250 - 6,1000
- Camshaft for 114" and 117" engine
- Responds very well to increased bore and or compression
- Maintains bottom end power and pulls hard above 2,950 rpm when compared to stock
- Cam specs measured on the lifter @ 0.050 lift with 1.61 rocker arm ratio.
Cam Installation Kit
- Includes cam bearing, cam/crank hardware and gasket/O-ring kit
- Allows for installation of the factory one piece pushrods or optional Feuling® heavy duty HP+® 0.165 wall one piece pushrods
Race Series lifters
- Hydraulic lifters have a full 0.200 of total travel
- Designed with a slower bleed down rate to handle heavy valve spring pressures
- Increase engine RPM before valve float and feature increased roller clearance for steep ramped camshafts and clearance for the Milwaukee Eight front exhaust camshaft lobe flange
- Made in the USA
- Heavy duty one piece pushrods are highly recommended.
- Feuling® fastener kit is recommended to help prevent cylinder head cracking.
- A high flow exhaust system and air cleaner is highly recommended for optimal performance.
- High Lift valve springs are required on stock cylinder heads, Screamin Eagle cylinder heads have high lift valve springs but will need to be verified.
- Feuling® does not recommend tuning beyond stock emissions standards.
Emission Notice · WARNING
Not Legal For Sale Or Use In California On Any Pollution Controlled Motor Vehicle or Carb Compliant.
Made in the USA
Specifications
- Vendor Part Number
- 1462
- Package Height
- 3.5
- Package Length
- 14
- Package Width
- 8.75
- Parts Unlimited #
- 0925-1619
- Brand
- Feuling Parts
- Exhaust Close Imperial
- 17.5°
- Exhaust Duration Imperial
- 241.5°
- Exhaust Lift Imperial
- 0.487"
- Exhaust Lift at TDC Imperial
- 0.146"
- Exhaust Lobe Centerline Imperial
- 103.25°
- Exhaust Open Imperial
- 44°
- Grind
- 487 Series
- Intake Close Imperial
- 37°
- Intake Duration Imperial
- 237°
- Intake Lift Imperial
- 0.478"
- Intake Lift at TDC Imperial
- 0.180"
- Intake Lobe Centerline Imperial
- 98.5°
- Intake Open Imperial
- 20.5°
- Model
- Reaper
- Riding Style
- Street
- Type
- Chain Drive
- Unit of Measure
- Kit
Fitment
53 vehicles| Year | Make | Make / Model Model |
|---|---|---|
| 2017 - 2025 | Harley-Davidson |
Harley-Davidson Electra Glide Police FLHTPI Electra Glide Police FLHTPI |
| 2018 - 2020 | Harley-Davidson |
Harley-Davidson FLDE Deluxe 107 FLDE Deluxe 107 |
| 2018 - 2019 | Harley-Davidson |
Harley-Davidson FLFB Fat Boy 107 FLFB Fat Boy 107 |
| 2018 - 2024 | Harley-Davidson |
Harley-Davidson FLFBS Fat Boy 114 FLFBS Fat Boy 114 |
| 2021 | Harley-Davidson |
Harley-Davidson FLH Electra Glide Revival FLH Electra Glide Revival |
| 2018 - 2021 | Harley-Davidson |
Harley-Davidson FLHC Heritage Classic 107 FLHC Heritage Classic 107 |
| 2018 - 2024 | Harley-Davidson |
Harley-Davidson FLHCS Heritage Classic 114 FLHCS Heritage Classic 114 |
| 2023 | Harley-Davidson |
Harley-Davidson FLHFB Electra Glide Highway King FLHFB Electra Glide Highway King |
| 2017 - 2022 | Harley-Davidson |
Harley-Davidson FLHR Road King FLHR Road King |
| 2017 - 2025 | Harley-Davidson |
Harley-Davidson FLHRXS Road King Special FLHRXS Road King Special |
| 2019 - 2022 | Harley-Davidson |
Harley-Davidson FLHT Electra Glide Standard FLHT Electra Glide Standard |
| 2017 - 2019 | Harley-Davidson |
Harley-Davidson FLHTCU Electra Glide Ultra Classic FLHTCU Electra Glide Ultra Classic |
| 2017 - 2025 | Harley-Davidson |
Harley-Davidson FLHTCUTG Tri Glide Ultra FLHTCUTG Tri Glide Ultra |
| 2022 | Harley-Davidson |
Harley-Davidson FLHTCUTG Tri Glide Ultra G.I. FLHTCUTG Tri Glide Ultra G.I. |
| 2017 - 2024 | Harley-Davidson |
Harley-Davidson FLHTK Ultra Limited FLHTK Ultra Limited |
| 2017 - 2019 | Harley-Davidson |
Harley-Davidson FLHTKL Ultra Limited Low FLHTKL Ultra Limited Low |
| 2017 - 2021 | Harley-Davidson |
Harley-Davidson FLHTKSE CVO Limited FLHTKSE CVO Limited |
| 2017 - 2025 | Harley-Davidson |
Harley-Davidson FLHX Street Glide FLHX Street Glide |
| 2017 - 2023 | Harley-Davidson |
Harley-Davidson FLHXS Street Glide Special FLHXS Street Glide Special |
| 2017 - 2022 | Harley-Davidson |
Harley-Davidson FLHXSE CVO Street Glide FLHXSE CVO Street Glide |
| 2022 - 2023 | Harley-Davidson |
Harley-Davidson FLHXST Street Glide ST FLHXST Street Glide ST |
| 2024 | Harley-Davidson |
Harley-Davidson FLI Hydra-Glide Revival FLI Hydra-Glide Revival |
| 2017 - 2025 | Harley-Davidson |
Harley-Davidson FLRT Freewheeler FLRT Freewheeler |
| 2018 - 2021 | Harley-Davidson |
Harley-Davidson FLSB Sport Glide 107 FLSB Sport Glide 107 |
| 2018 - 2021 | Harley-Davidson |
Harley-Davidson FLSL Softail Slim 107 FLSL Softail Slim 107 |
| 2020 - 2024 | Harley-Davidson |
Harley-Davidson FLTRK Road Glide Limited FLTRK Road Glide Limited |
| 2022 | Harley-Davidson |
Harley-Davidson FLTRKSE CVO Road Glide Limited FLTRKSE CVO Road Glide Limited |
| 2023 - 2025 | Harley-Davidson |
Harley-Davidson FLTRT Road Glide 3 FLTRT Road Glide 3 |
| 2017 - 2019 | Harley-Davidson |
Harley-Davidson FLTRU Road Glide Ultra FLTRU Road Glide Ultra |
| 2017 - 2025 | Harley-Davidson |
Harley-Davidson FLTRX Road Glide FLTRX Road Glide |
| 2017 - 2023 | Harley-Davidson |
Harley-Davidson FLTRXS Road Glide Special FLTRXS Road Glide Special |
| 2018 - 2022 | Harley-Davidson |
Harley-Davidson FLTRXSE CVO Road Glide FLTRXSE CVO Road Glide |
| 2022 - 2023 | Harley-Davidson |
Harley-Davidson FLTRXST Road Glide ST FLTRXST Road Glide ST |
| 2018 - 2020 | Harley-Davidson |
Harley-Davidson FXBB Street Bob 107 FXBB Street Bob 107 |
| 2021 - 2024 | Harley-Davidson |
Harley-Davidson FXBBS Street Bob 114 FXBBS Street Bob 114 |
| 2018 - 2019 | Harley-Davidson |
Harley-Davidson FXBR Breakout 107 FXBR Breakout 107 |
| 2023 - 2025 | Harley-Davidson |
Harley-Davidson FXBR Breakout 117 FXBR Breakout 117 |
| 2018 - 2020 | Harley-Davidson |
Harley-Davidson FXBRS Breakout 114 FXBRS Breakout 114 |
| 2019 - 2020 | Harley-Davidson |
Harley-Davidson FXDRS FXDR 114 FXDRS FXDR 114 |
| 2018 - 2019 | Harley-Davidson |
Harley-Davidson FXFB Fat Bob 107 FXFB Fat Bob 107 |
| 2018 - 2023 | Harley-Davidson |
Harley-Davidson FXFBS Fat Bob 114 FXFBS Fat Bob 114 |
| 2018 - 2020 | Harley-Davidson |
Harley-Davidson FXLR Low Rider 107 FXLR Low Rider 107 |
| 2020 - 2021 | Harley-Davidson |
Harley-Davidson FXLRS Low Rider S 114 FXLRS Low Rider S 114 |
| 2022 | Harley-Davidson |
Harley-Davidson FXLRS Low Rider S 117 FXLRS Low Rider S 117 |
| 2022 | Harley-Davidson |
Harley-Davidson FXLRST Low Rider ST 117 FXLRST Low Rider ST 117 |
| 2022 | Harley-Davidson |
Harley-Davidson FXRST Low Rider El Diablo 117 FXRST Low Rider El Diablo 117 |
| 2020 - 2024 | Harley-Davidson |
Harley-Davidson FXST Softail Standard 107 FXST Softail Standard 107 |
| 2025 | Harley-Davidson |
Harley-Davidson Road Glide Custom FLTRX Road Glide Custom FLTRX |
| 2024 - 2025 | Harley-Davidson |
Harley-Davidson Road Glide Police FLTRXP Road Glide Police FLTRXP |
| 2017 - 2025 | Harley-Davidson |
Harley-Davidson Road King Police FLHP Road King Police FLHP |
| 2022 | Harley-Davidson |
Harley-Davidson Softail Street Bob FXBB Softail Street Bob FXBB |
| 2025 | Harley-Davidson |
Harley-Davidson Street Glide EFI FLHX Street Glide EFI FLHX |
| 2025 | Harley-Davidson |
Harley-Davidson Street Glide Ultra FLHXU Street Glide Ultra FLHXU |
Fitment Disclosure
For reference only, please consult your owner’s manual to confirm your fitment.
General Safety Warning
Failure to follow the manufacturer's recommendations and requirements can cause product failure resulting in serious injury or death. While effort has been taken to collect accurate fitment information, 43 Moto accepts no liability for loss or damage resulting from errors or omissions. If you believe any of the information provided is erroneous, please email [email protected].
