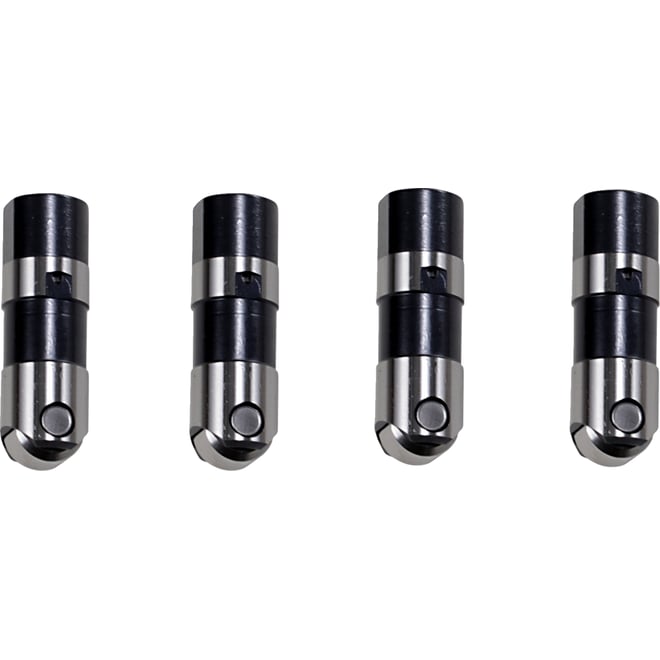

Feuling OIL Pump Corp. Lifters - Race Series® - M8
Feuling OIL Pump Corp.
STILL NOT SURE ABOUT FITMENT?
LET US HELP
SKU: 90-36642
SKU:
Out of stock
Sale
$319.95
Free Shipping
You May Also Like
Product Details
Features
- New revolutionary design with 0.115" of total travel vs. a full travel lifter with 0.200"
- These lifters will increase RPM by decreasing valve float and valve-train harmonics while maintaining a quiet engine
- Travel reduction reduces the amount of oil that is required to fill the inside of the lifter which reduces oil aeration inside the lifter on steep, fast action high lift camshaft lobes
- When oil aeration is present inside the lifter, the pushrod seat drops when the lifter rolls onto the front cam lobe ramp after squeezing the aeration down thus creating a noisy poor performing lifter
- Short travel lifters should be set with 0.065" - 0.070" of pre-load and with the normal engine growth from heat will put the operating lifter pre load at or around half travel
- Machined from a steel body and designed to exceed the needs of large lift camshafts and higher valve spring pressures with a slower bleed down rate
- Compatible with either Feuling® HP+® or Race Series® oil pumps and are designed for use with both street and strip engines
- Maintain proper oil flow to the top end, increase engine RPM, valve-train stability, decreasing valve float promoting maximum valve lift
- Precision ground needle roller bearing with high chromium steel axle for long life and minimal friction
- High-flow disc-style quick-reacting check valve for better reaction at higher RPM
- Spin-Tron dyno developed and track proven
- Made in the U.S.A.
- Feuling® recommends pumping up each lifter by hand prior to installation, to remove all air and provide a fully pumped up lifter. Use of a thin weight oil like ATF in a squirt can works well.
- Feuling® recommends Race Series® lifters for engines running higher than 185 lbs (84 kg) valve spring seat pressure.
- Feuling® recommends the use of a high volume oil pump which will result in quieter, better performing lifters.
Prop65 Notice
WARNING
This product can expose you to chemicals, including chromium, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Specifications
| Vendor Part Number | 4017ST |
|---|---|
| Package Height | 2.56 |
| Package Length | 6.05 |
| Package Width | 4.96 |
| Parts Unlimited # | 0929-0081 |
| Application | Exhaust |
| Brand | Feuling OIL Pump Corp. |
| Material | Steel |
| Model | Race Series® |
| Riding Style | Street |
| Size Imperial | 0.8420" - 0.8423" |
| Style | Short-Travel |
| Type | Hydraulic |
| Unit of Measure | Set of 4 |
Fitment
| YEAR | MAKE | MODEL |
|---|---|---|
| 2017 - 2024 | Harley-Davidson | Electra Glide Police FLHTPI |
| 2018 - 2020 | Harley-Davidson | FLDE Deluxe 107 |
| 2018 - 2019 | Harley-Davidson | FLFB Fat Boy 107 |
| 2018 - 2024 | Harley-Davidson | FLFBS Fat Boy 114 |
| 2021 | Harley-Davidson | FLH Electra Glide Revival |
| 2018 - 2021 | Harley-Davidson | FLHC Heritage Classic 107 |
| 2018 - 2024 | Harley-Davidson | FLHCS Heritage Classic 114 |
| 2023 | Harley-Davidson | FLHFB Electra Glide Highway King |
| 2017 - 2022 | Harley-Davidson | FLHR Road King |
| 2017 - 2024 | Harley-Davidson | FLHRXS Road King Special |
| 2019 - 2022 | Harley-Davidson | FLHT Electra Glide Standard |
| 2017 - 2019 | Harley-Davidson | FLHTCU Electra Glide Ultra Classic |
| 2017 - 2024 | Harley-Davidson | FLHTCUTG Tri Glide Ultra |
| 2020 - 2022 | Harley-Davidson | FLHTCUTGSE CVO Tri Glide |
| 2017 - 2024 | Harley-Davidson | FLHTK Ultra Limited |
| 2017 - 2019 | Harley-Davidson | FLHTKL Ultra Limited Low |
| 2017 - 2021 | Harley-Davidson | FLHTKSE CVO Limited |
| 2017 - 2024 | Harley-Davidson | FLHX Street Glide |
| 2017 - 2023 | Harley-Davidson | FLHXS Street Glide Special |
| 2017 - 2024 | Harley-Davidson | FLHXSE CVO Street Glide |
| 2022 - 2023 | Harley-Davidson | FLHXST Street Glide ST |
| 2024 | Harley-Davidson | FLI Hydra-Glide Revival |
| 2017 - 2024 | Harley-Davidson | FLRT Freewheeler |
| 2018 - 2021 | Harley-Davidson | FLSB Sport Glide 107 |
| 2018 - 2021 | Harley-Davidson | FLSL Softail Slim 107 |
| 2020 - 2024 | Harley-Davidson | FLTRK Road Glide Limited |
| 2022 - 2023 | Harley-Davidson | FLTRKSE CVO Road Glide Limited |
| 2017 - 2019 | Harley-Davidson | FLTRU Road Glide Ultra |
| 2017 - 2024 | Harley-Davidson | FLTRX Road Glide |
| 2017 - 2023 | Harley-Davidson | FLTRXS Road Glide Special |
| 2018 - 2024 | Harley-Davidson | FLTRXSE CVO Road Glide |
| 2022 - 2023 | Harley-Davidson | FLTRXST Road Glide ST |
| 2024 | Harley-Davidson | FLTRXSTSE CVO Road Glide ST |
| 2018 - 2020 | Harley-Davidson | FXBB Street Bob 107 |
| 2021 - 2024 | Harley-Davidson | FXBBS Street Bob 114 |
| 2018 - 2019 | Harley-Davidson | FXBR Breakout 107 |
| 2023 - 2024 | Harley-Davidson | FXBR Breakout 117 |
| 2018 - 2020 | Harley-Davidson | FXBRS Breakout 114 |
| 2019 - 2020 | Harley-Davidson | FXDRS FXDR 114 |
| 2018 - 2019 | Harley-Davidson | FXFB Fat Bob 107 |
| 2018 - 2023 | Harley-Davidson | FXFBS Fat Bob 114 |
| 2018 - 2020 | Harley-Davidson | FXLR Low Rider 107 |
| 2020 - 2021 | Harley-Davidson | FXLRS Low Rider S 114 |
| 2022 - 2024 | Harley-Davidson | FXLRS Low Rider S 117 |
| 2022 - 2024 | Harley-Davidson | FXLRST Low Rider ST 117 |
| 2022 | Harley-Davidson | FXRST Low Rider El Diablo 117 |
| 2020 - 2024 | Harley-Davidson | FXST Softail Standard 107 |
| 2024 | Harley-Davidson | Road Glide Police FLTRXP |
| 2017 - 2024 | Harley-Davidson | Road King Police FLHP |
| 2022 | Harley-Davidson | Softail Street Bob FXBB |
Fitment Disclosure
For reference only, please consult your owner’s manual to confirm your fitment.
General Safety Warning
Failure to follow the manufacturer's recommendations and requirements can cause product failure resulting in serious injury or death. While effort has been taken to collect accurate fitment information, 43 Moto accepts no liability for loss or damage resulting from errors or omissions. If you believe any of the information provided is erroneous, please email [email protected].
